· Product Description and Applications
JN22-40.5/31.5 type indoor high voltage earth switch (hereinafter referred to as the earthing switch) is from Xi’an High Voltage Apparatus Research Institute developed a kind of performance parameters of the advanced level of high-tech products. Following a thorough assessment for GB1985-89 "High voltage isolating switches and earthing switches" shall apply to 40.5KV AC 50Hz power systems with KYN61-40.5 model and other models supporting the use of high voltage switchgear, or as high-voltage electrical equipment overhaul, ground protection.

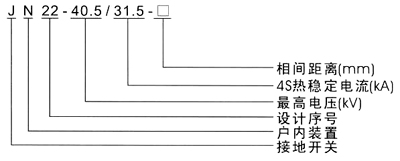

· Model and the meaning of
· use of environmental conditions
· Not exceed 2000 meters above sea level;
· ambient air temperature: up to 40 ℃, not limited to -10 ℃;
· earthquake attend no more than 8 degrees;
· no fire, explosion, severe dust, chemical corrosion, and the violent vibration place.
· Technical parameters
project |
units |
data |
maximum voltage |
KV |
40.5 |
thermal current |
KA |
31.5 |
thermal current time |
S |
4 |
short-circuit current |
KA |
80 |
dynamic current |
KA |
80 |
white pitch |
mm |
280; 300; 350 |
Rated insulation level |
frequency voltage |
KV |
contrast and white |
95 |
lightning impulse withstand voltage |
185 |

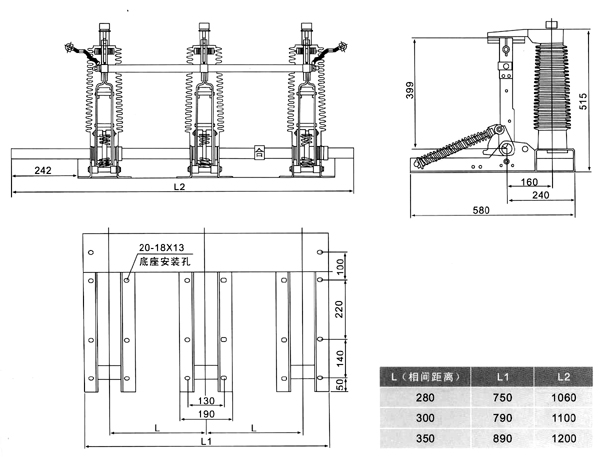

· Appearance and installation dimensions
