· Overview
JN4-12 (G)-type indoor high voltage earth switch, is equipped for 12KV indoor away metal armor metal enclosed switchgear and other major components of high-voltage switchgear can also be used alone. As a 12KV AC 50Hz and below ground power system protection purposes, together with related short-circuit current capacity, reasonable structure, small size, operating flexibility, easy installation and adjustment.
· Environmental conditions
· Altitude 1000-3000m; · the surrounding air temperature: up to 40 ℃: -25 ℃ · lower limit of not more than 8 degree earthquake intensity; · no fire, explosion, serious students dust, chemical corrosion and severe vibration sites

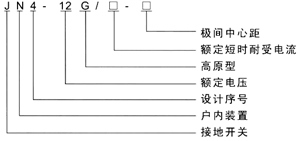

· Model:
· Technical parameters
project |
units |
data |
rated current |
KV |
12 |
Rated short time withstand current |
KA |
20 |
Rated Short Time |
S |
4 |
Rated peak withstand current |
KA |
50 |
Rated short-circuit current |
KA |
50 |
center distance between poles |
mm |
230; 230; 250 |
Rated insulation level |
1min power frequency withstand voltage |
KV |
42 |
lightning impulse withstand voltage |
KV |
75 |
· Model specifications
Model Specification |
A |
B |
C |
JN4-12G/20-210 |
752 |
210 |
682 |
JN4-12G/20-230 |
792 |
230 |
668 |
JN4-12G/20-250 |
832 |
250 |
708 |
|
